Chancel Build

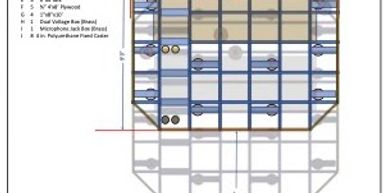

Lower Level Structur
Choir and Bell Structure
Choir and Bell Structure
- 2x6 Sleepers on 16-inch centers and Spacers on 24-inch centers
- Anchored to concrete floor at 14 points for stability and sound proofing
- 23/32 Plywood Sheathing
- R-12 insulation for sound proofing
- #10 3 1⁄2 inch deck screw fasteners for
framing - #8 2-inch deck screw fasteners for
sheathing (also clued to 2x6s for stiffness
and sound proofing - Brass Multi-voltage and microphone flush mounted boxes
- Ventilation outlets and ducting
- 1x8x48’ front riser stained to match existing church wood

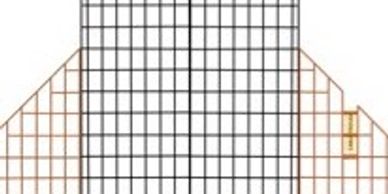

Choir and Bell Structure
Choir and Bell Structure
Choir and Bell Structure
- 2x6 Sleepers on 16-inch centers and Spacers on 24-inch centers
- 16 - 3 in. Chrome Spokes Swivel Caster with 132 lbs. Load Capacity with Soft Rubber Tread
- 23/32 Plywood Sheathing
- #10 3 1⁄2 inch deck screw fasteners for framing
- #8 2-inch deck screw fasteners for sheathing
(also clued to 2x6s for stiffness and sound
proofing - Brass Multi-voltage and microphone flush
mounted boxes
Altar Platform
Choir and Bell Structure
Altar Platform
- 2x6 Sleepers on 16-inch centers and Spacers on 24-inch centers
- 23/32 Plywood Sheathing
- 4x4 suspension stanchions (2x4 cross braced)
- #10 3 1⁄2 inch deck screw fasteners for framing
- #8 2-inch deck screw fasteners for sheathing (also clued to 2x6s for stiffness and sound proofing
- 1⁄2 inch Drywall painted to match sound booth and Sanctuary walls
- 1x8 Risers stained to match existing church wood trim
- 1x8 Half-wall caps stained to match existing church wood trim
